mikan architecture

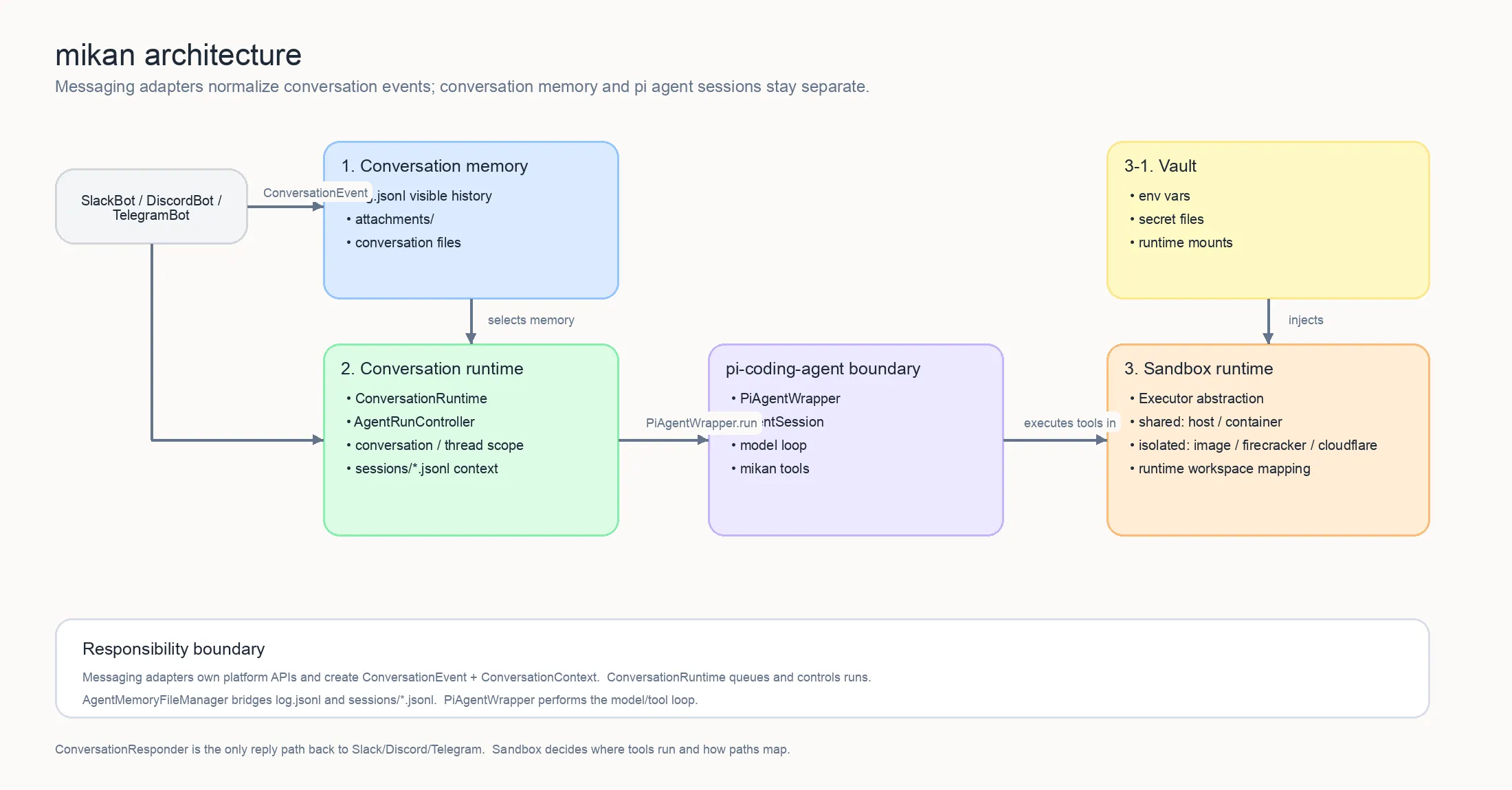

1. System overview

2. Main layers

A. Platform adapter layer

For the shared adapter contract, see Platform adapters. Platform details are documented for Slack, Discord, Telegram, and GitHub.

• src/adapters/slack/*
• src/adapters/telegram/*
• src/adapters/discord/*
• src/adapters/github/*
• src/adapter.ts

Responsibilities:

• receive native Slack / Telegram / Discord events or poll GitHub issues and pull requests
• convert them to unified ConversationEvent, ConversationMessage, and ConversationResponder values
• compute sessionKey according to platform rules
• wrap platform differences such as replies, typing, working state, and file upload

B. Core orchestration layer

• src/main.ts
• src/runtime/conversation-runtime.ts
• src/adapters/intake.ts
• src/commands/manifest.ts
• src/sessions/store.ts
• src/sessions/chat-history-sync.ts

Responsibilities:

• start the CLI and read env / args / settings.json
• create ConversationRuntime as the MessagingEventHandler for each platform bot
• recognize the stop magic word in conversation intake (src/adapters/intake.ts) before trigger policy and queueing
• dispatch control commands such as /login, /session, and /new inside ConversationRuntime.runSession; the command inventory that adapters register/route from lives in src/commands/manifest.ts
• manage conversationStates and per-session queues to avoid duplicate runs in the same session
• decide which PiAgentWrapper corresponds to each session scope

C. Agent execution layer

• src/agent.ts
• src/harness/*
• src/tools/*

Responsibilities:

• create PiAgentWrapper
• load model, skills, memory, and session context
• send user messages into mikan’s own agent harness (src/harness/, built on pi-agent-core / pi-ai), which runs the turn loop with auto-compaction, auto-retry, and extension hooks
• connect tool calls to local read/bash/edit/write/event/attach
• write tool results back to the session and return responses through the adapter

D. Execution environment layer

• src/sandbox/*
• src/provisioner.ts
• src/execution-resolver.ts

Responsibilities:

• provide a unified Executor abstraction
• split sandbox runtimes into two categories:
  • shared: host / container:<name>, where the same host or named container is shared
  • isolated: image:<image> / gondolin:default / firecracker:* / cloudflare:*, routed by actor/conversation/vault to isolated execution environments
• use ActorExecutionResolver to decide the actual executor by user/conversation/vault
• in image mode, automatically create and recycle Docker containers, resolving image:<image> to a concrete container:<name> executor

E. State and persistence layer

• src/sessions/store.ts
• src/sessions/chat-history-sync.ts
• src/vault/index.ts

Responsibilities:

• session file management: sessions/current and *.jsonl
• dual-track history persistence with log.jsonl and structured sessions
• workspace / conversation-level MEMORY.md
• per-conversation vault credentials and mount / env injection

F. Supporting services layer

• src/web/login/*
• src/web/admin/*
• src/web/session-view/*
• src/events.ts

Responsibilities:

• src/web/server.ts owns the HTTP server and mounts login/vault, admin, session-view, and agent-event routes
• provide a web login portal that supports API key and OAuth writes into the vault
• provide an admin portal for conversation/settings/workspace/events/skills management and link generation
• provide a session viewer; it can currently display session timelines and, when interactive wiring is enabled, send messages through /session/message
• watch events/*.json and re-inject scheduled events into the bot flow

3. Message processing flow

sequenceDiagram
  participant U as User
  participant P as Slack / Telegram / Discord / GitHub
  participant A as Adapter
  participant M as ConversationRuntime / Orchestrator
  participant S as sessions/store.ts
  participant R as agent.ts / PiAgentWrapper
  participant T as tools/*
  participant X as sandbox Executor
  participant W as Workspace / sessions

  U->>P: send message / mention / reply
  P->>A: platform event
  A->>M: ConversationEvent + ConversationMessage + ResponseContext
  M->>M: queue event + dispatch commands
  M->>S: resolve session scope
  S-->>M: contextFile + sessionDir
  M->>R: getState() / run()
  R->>W: read MEMORY.md / sessions/*.jsonl, query log.jsonl when needed
  R->>R: build system prompt / skills / model / session context
  R->>T: execute tools
  T->>X: read / bash / edit / write / event / attach
  X-->>T: tool result
  T-->>R: return result
  R->>W: write structured session, adapter records platform log
  R-->>M: final response
  M-->>A: response content / diagnostics / files
  A-->>P: platform message update
  P-->>U: user sees response

4. Sessions and file layout

mikan separates sandbox-visible working data from host-authoritative settings and credentials:

<workspace>/
├── MEMORY.md                  # workspace-level memory
├── skills/                    # workspace-level skills
├── events/                    # scheduled and external events
└── <conversationId>/
    ├── MEMORY.md              # conversation-level memory
    ├── log.jsonl              # grep-friendly platform message history
    ├── attachments/           # platform attachment downloads
    ├── scratch/               # in-progress working area
    ├── skills/                # conversation-level skills
    └── sessions/
        ├── current            # top-level session pointer
        ├── <timestamp>_<id>.jsonl
        └── <scope_id>.jsonl   # thread / reply scoped sessions

<state-dir>/
├── settings.json              # required global settings
├── conversations/
│   └── <conversationId>/settings.json  # host-only conversation overrides
└── vaults/<vaultId>/          # credentials

The default state directory is ~/.mikan. It must remain outside sandbox-visible workspace paths.

Design points:

• log.jsonl is the platform conversation log: what actually happened on the source platform
• sessions/*.jsonl is the LLM working context/log: what mikan gave the LLM and what the LLM/tool did
• the top-level session uses the current pointer, but current is not channel history; when missing, recent top-level working context can be rebuilt from log.jsonl
• thread / reply sessions use fixed file names so scoped sessions can be tracked separately
• Slack top-level messages share a channel session; Slack thread replies use conversationId:threadTs
• Slack events first create a top-level anchor message, then run with conversationId:anchorTs

5. Login / Vault / Sandbox relationship

flowchart TD
  User["User in DM"] --> LoginCmd["/login"]
  LoginCmd --> Main["main.ts"]
  Main --> LinkToken["InMemoryLinkTokenStore"]
  Main --> VaultRouting["vault-routing.ts"]
  Main --> WebServer["web/server.ts"]
  WebServer --> Browser["Browser Portal"]
  Browser --> OAuth["OAuth provider / API key form"]
  OAuth --> WebServer
  WebServer --> VaultManager["vault/index.ts\nwrite env/file into vault"]
  VaultManager --> VaultDir["state-dir/vaults/<vaultId>/"]
  VaultManager --> Resolver["execution-resolver.ts"]
  Resolver --> Sandbox["host / container / image / gondolin / firecracker / cloudflare"]

Key points:

• credentials do not go directly into the workspace
• vaults live in --state-dir
• at execution time, the conversation vault is routed to the corresponding sandbox
• image / gondolin / firecracker / cloudflare modes use per-actor/per-conversation vault routing; container:<name> uses a shared container vault; host does not inject vault env

6. Differences between events and normal chats

events/*.json is watched by EventsWatcher, then converted into ConversationEvent and sent through the normal flow again. In other words, events are not a separate executor; they are another message intake path.

This lets these capabilities share the same mechanism:

• session context
• vault routing
• tool execution
• platform replies
• stop / running state management

7. Architecture conclusion

In one sentence, the core of mikan is:

A multi-platform AI agent bot coordinated by main.ts, executed by agent.ts, and supported by session/vault/sandbox infrastructure.

You can think of it as 6 core subsystems:

1. Platform adapters
2. Bot runtime orchestration
3. Agent + tools
4. Session/context persistence
5. Vault + sandbox execution routing
6. Web/event side services
